A body of mass m = 0.5 kg is suspended by a string and pulle...
![A body of mass m = 0.5 kg is suspended by a string and pulled by a horizontal force of 1g N as shown in the 12N diagram: Calculate the tension T in the String if the body is in equilibrium. [Take g as 10ms-1]](/img/aptitude-tests/questions/9329.jpg "A body of mass m = 0.5 kg is suspended by a string and pulled by a horizontal force of 1g N as shown in the 12N diagram: Calculate the tension T in the String if the body is in equilibrium. [Take g as 10ms-1]")

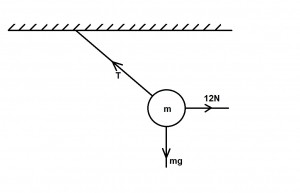

A body of mass m = 0.5 kg is suspended by a string and pulled by a horizontal force of 1g N as shown in the 12N diagram: Calculate the tension T in the String if the body is in equilibrium. [Take g as 10ms-1]
A.
7.0
B.
10.9
C.
12.5
D.
13.0
E.
17.0
Correct answer is D
Mg = 5N
T2 = 52 + 122T = 13N
