In the diagram above, O is the center of the circle QOR i...

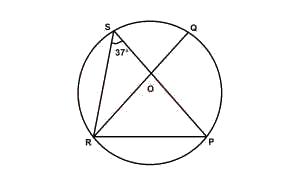

In the diagram above, O is the center of the circle QOR is a diameter and ∠PSR is 37°. Find ∠PRQ
37o
53o
65o
127o
147o
Correct answer is B
Construction: Join PQ.
Then < RSP = 37° = < RQP (angles on the same segment)
But < RPQ = 90° (angle in a semi-circle)
∴ < PRQ = 180° - (90° + 37°)
= 53°
