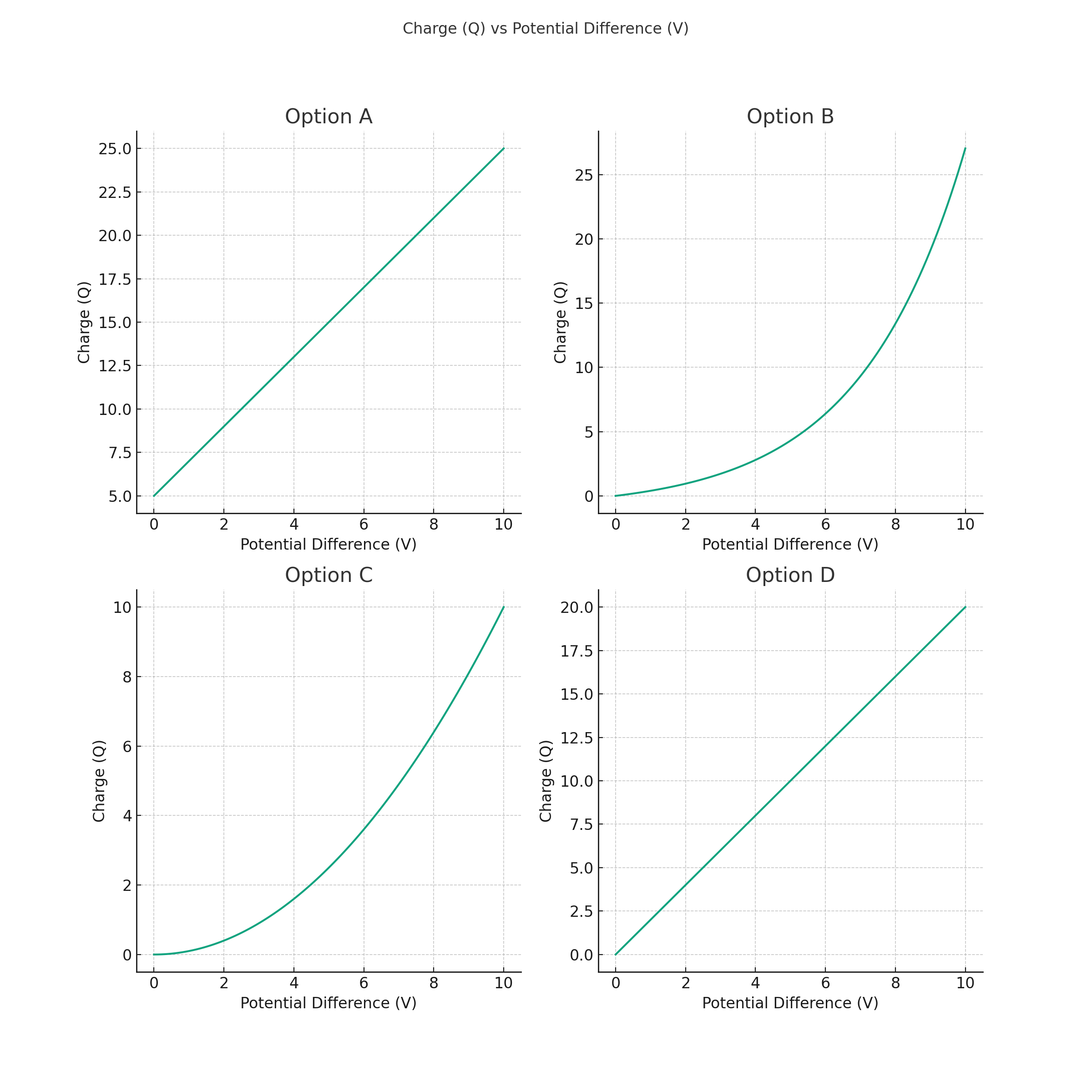

Which of the following graphs of a charge Q against potential difference V across the capacitor is correct?
