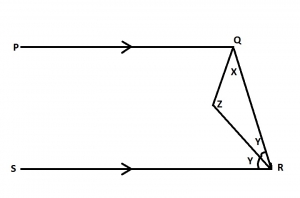

In the diagram, PQ||SR. Find the value of Z...
In the diagram, PQ||SR. Find the value of Z
A.
30o
B.
40o
C.
45o
D.
90o
E.
120o
Correct answer is D
Given PQ//SR
x = 45º
y = 45º
z = ?
Sum of angles in a triangle = 180º
(x + y + z)º = 180º
(45 + 45 + z)º = 180º
90º + zº = 180º
z = (180 - 90)º
z = 90º
