Calculate the rate at which energy is used up in the circ...

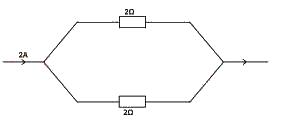

Calculate the rate at which energy is used up in the circuit illustrated by the diagram
0 W
2 W
4 W
8 W
16 W
Correct answer is C
R=R1XR2R1+R2
= 1
E=I2R=22x1=4W
