Fig 1 is a logic gate. Use it to answer the quest...

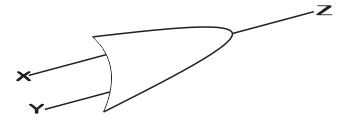

Fig 1 is a logic gate. Use it to answer the question below
Fig 1 represents_________?
an AND gate
an OR gate
a NOT gate
a NAND gate
Correct answer is B
No explanation has been provided for this answer.
