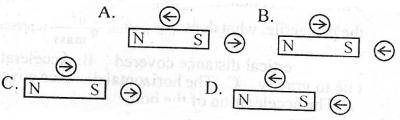

A student uses two compass needles to investigate the magnetic field around a bar magnet. Which of the following diagrams show the correct directions of the needles?
A.
A
B.
B
C.
C
D.
D
Correct answer is B
By convention, the field direction is taken to be outward from the North pole and in to the South pole of the magnet. Also, they form closed lines.
