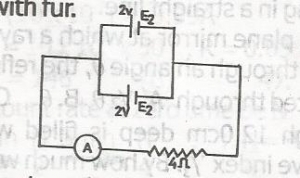

Th internal resistance of each of the cells E1 and E2 Shown in the figure above is 2 Ohm. Calculate the total current in the circuit
