what is the resultant resistance in the circuit given abo...

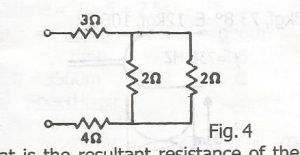

what is the resultant resistance in the circuit given above

what is the resultant resistance in the circuit given above

A.

11Ω

B.

8Ω

C.

4Ω

D.

3.6Ω

E.

4.3Ω

View answer & explanation

Correct answer is B

No explanation has been provided for this answer.
