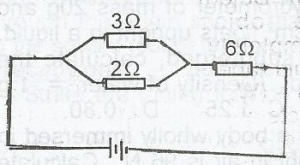

In the diagram given, the current passing through the 6\(\Omega\) resistor is 1.5A. Calculate the terminal p.d. of the battery in the diagram
A.
7.50V
B.
9.00V
C.
10.80V
D.
1.25V
Correct answer is C
C.V = 1R1 + 1R2
= (1.2 1.5) + (1.5 6)
= 1.8 + 9
= 10.80V
